W H A T ’S O N T H E M O D U L E ?

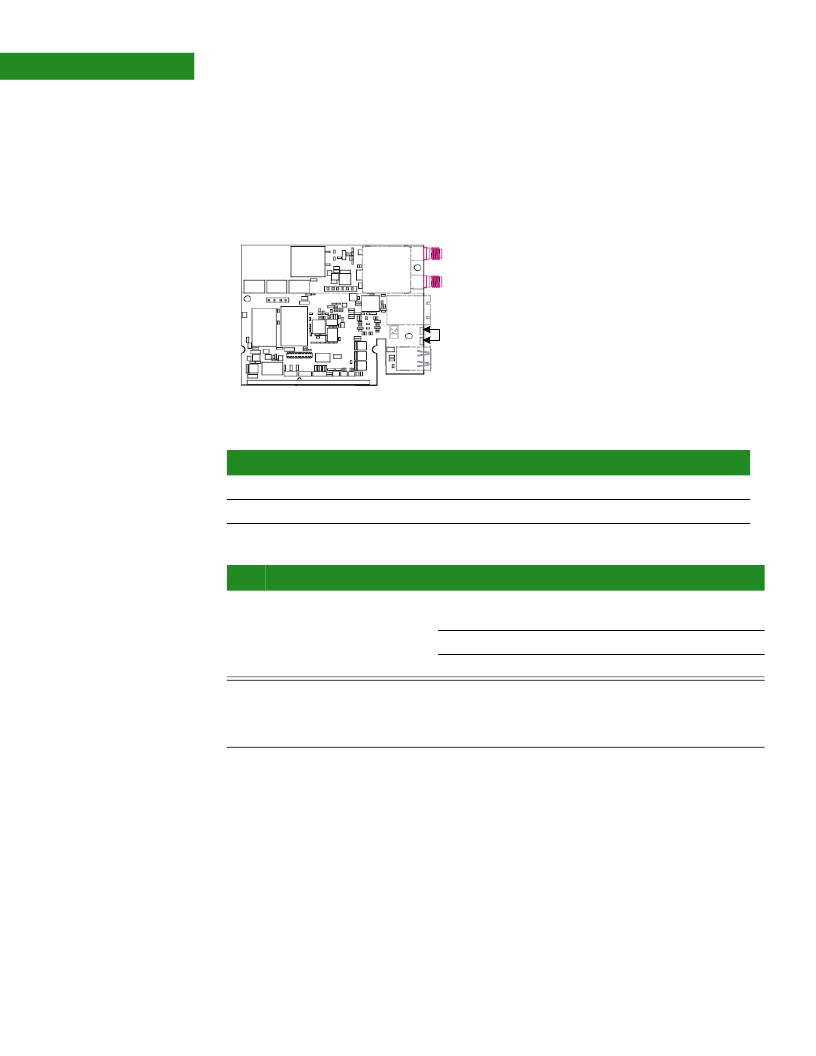

802.3af Power over Ethernet (PoE) pass-through connector, P5
802.3af Power over Ethernet (PoE) pass-through
connector, P5
The PoE pass-through connector, P5, mates with the P20 header on the development
board. This PoE pass-through feature passes PoE power connections from the
Ethernet signal cable to the user’s equipment through P5. The PoE feature provides
a power source for compliant “powered” equipment, and is nominally 48VDC with a
possible 30–57VDC 13 W maximum range.
PoE pass-through
connector, P5
Connector
description
Pin
1
2
3
4
Signal
TX_CT
RJ45_7/8
RX_CT
RJ45_4/5
Description
Ethernet transformer transmit CT
Ethernet connector pins 7 and 8
Ethernet transformer receive CT
Ethernet connector pins 4 and 5
PoE support
If you are planning to add PoE support to your product, see the most recent revision
..................................................................................
of the IEEE 802.3af specification available at http://www.ieee802.org/3/af/. The
document provides detailed information about the standard and its proper
implementation.
Module LEDs
By default, the ConnectCore 9C/Wi-9C modules use the CR1 and CR2 LEDs as
described:
www.digiembedded.com
?
ConnectCore Wi-9C module: To indicate WLAN-related information, such as
association status and network activity.
13
